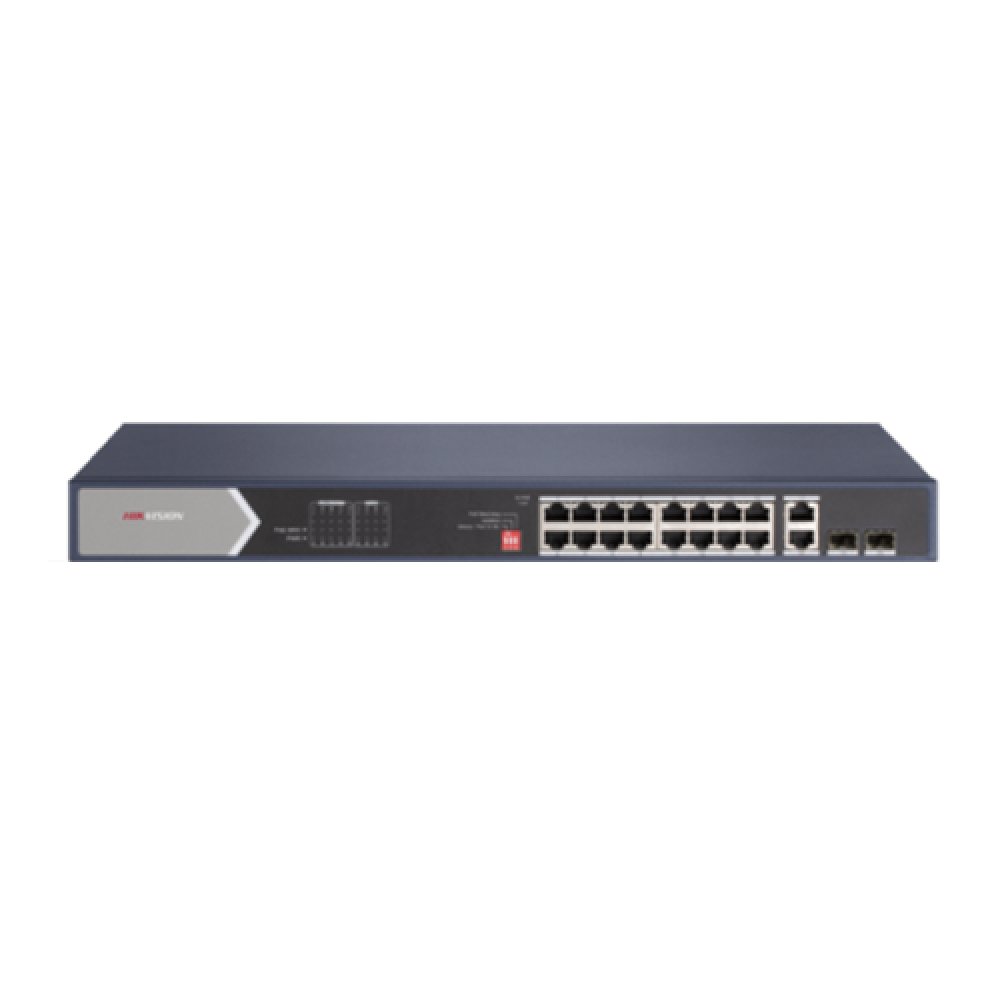

سويتش هيكيفجن Hikvision DS-3E0520HP-E Switch
يرجى التواصل لتأكد من توافر الكمية
المواصفات :
الابعاد : 440mm × 220.8mm × 44mm
درجة حرارة التشغيل : 10C to 55C-
التيار الكهربائي المتردد : 100to 240 VAC , 50/60Hz , Max4A
استهلاك الطاقة : < 25 W
الوزن : 3.8kg
معلومات الشبكة :
Switching Capacity : 40 Gbps
Packet Forwarding Rate : 29.76 Mpps
المنافذ :
Ports : 12 × Gigabit PoE ports, 4 × Gigabit Hi-PoE ports, 2 × Gigabit RJ45 ports, and 2 × Gigabit fiber optical ports
POE Port : 12 × Gigabit PoE ports, 4 × Gigabit Hi-PoE ports, 2 × Gigabit RJ45 ports, and 2 × Gigabit fiber optical ports
POE Standard : Ports 1 to 4 : IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 5 to 16 : IEEE 802.3af, IEEE 802.3at
Dialing Function : Long Range: Ports 13 and 16 : up to 300 m.
Port Isolation : Ports 1 to 16 : port isolation mode to improve network security.
PoE Watchdog : Ports 1 to 16 : auto detect and restart the cameras that do not respond
Approval :
EMC :
FCC (47 CFR Part 15, Subpart B) , CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015) , RCM (AS/NZS CISPR 32: 2015) , IC (ICES-003: Issue 6, 2016)
Safety : UL (UL 60950-1) , CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013) , CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry : CE-RoHS (2011/65/EU) , WEEE (2012/19/EU) , Reach (Regulation (EC) No 1907/2006)
